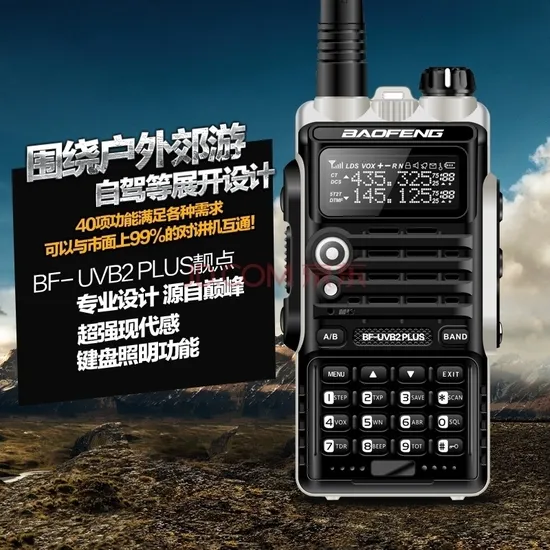

Rádio ht Baofeng BF-UVB2 Plus - 8Wats  Dual Band VHF/UHF



Bateria de longa duração 4800mAh Li-ion









All of our items are Brand New





Model



BF-UVB2





Dual band /dual display / dual standby



A/B band independent operation(UV UU VV)





128 groups channels storage



Shortcut menu operation mode





Memory channels scan



Time/ Carrier / Search Operation





Emergency Alarm



Indicator and flashlight Flashing Together





Time-out Timer (TOT)



15-600/Stepping 15





Squelch Level(SQL)



0-9 Grade





PTT & ANIID



ON OFF/0-9;A-F





Voice companding



50 CTCSS/104 DCS





High/Low TX power selectable



Busy channel lock-out(BCLO)





DTMF ST function



DT+ANI/ANI-ST/DT-ST/OFF





Dual PTT



Yes









Wide/Narrow Band(25kHz/12.5kHz)



Yes









VOX function



Yes



OFF/1-10





1750HZ Tone



Yes









Busy lockout function



Yes









Scanning function



Yes









Monitor function



Yes









Time-out Timer (TOT) function



Yes









LCD display



Yes









Dual display



Yes









Dual Standby



Yes









Battery voltage display function



Yes









Channel name display and editing functions



Yes









Signal strength indicator



Yes









Keypad lock function



Yes









Built-in Led torch



Yes









FM radio



Yes



65-108MHZ(Reception)





Emergency alarm function



Yes









Low battery alarm



Yes









Power saving function



Yes









High/Low TX power selectable



Yes



8W







ROGER SET



Yes



FULL/MGS





Chinese and English voice prompt



Yes









Wire clone function



Yes









PC software programmable



Yes









General Specifications





Frequency stability



±2.5ppm





Frequency Step



2.5/5/6.25/10/12.5/20/25KHz





Antenna Impedance



50ohm





Working temperature



-20~+50°C





Rated Voltage



7.4V DC±10%





Voltagem



110/220v





Battery type



Li-ion battery





Battery capacity



4800mAh







Headphone jack type



2 Pin Kenwood Plug





Antenna Type



SMA-F(Female)





Mode Of Operation



Simplex Or Semi-duplex





Weight



588g





Dimension(LXWXH)



42X61X131mm(Not Antenna)





Transmitter





Type Of Modulation



16køF3E / 11køF3E





Max frequency deviation



< 5kHz(Wide)/< 2.5kHz(Narrow)





Emissioncurrent



=60dB





Spurious response



65dB





Adjacent channel selectivity( wide/narrow)
