Frequency Coverage

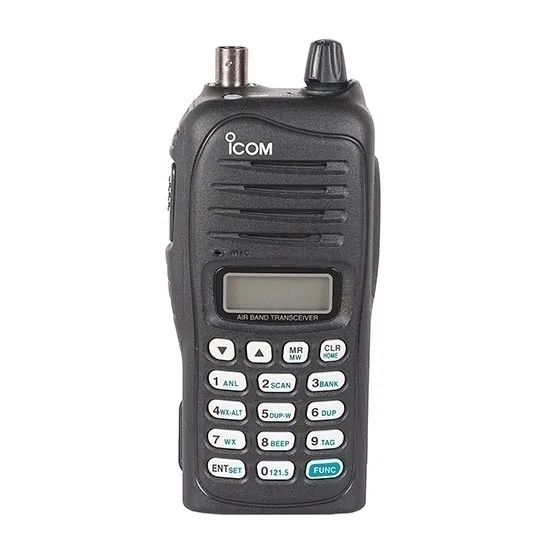

IC-A14

Tx (COM)

Rx (COM, NAV)

Rx (Weather)

IC-A14S

Tx/Rx (COM)



118.000-136.975 MHz

108.000-136.975 MHz

161.650-163.275 MHz



118.000-136.975 MHz

Mode

Weather (IC-A14 only) AM (6K00A3E)

FM (16K0G3E)

Channel spacing 25 kHz

No. of memory channels

IC-A14

IC-A14S

200 channels with 10 banks

100 channels

Antenna impedance 50Ω (BNC type)

Power supply requirement 7.4V DC (Icom battery pack)

Current drain (at 7.2 V DC)

Tx

Rx Max. audio

Rx Stand-by

1.5 A typical

500 mA typical

50 mA typical

Operating Temperature Range -10°C to +60°C; -14°F to +140°F

Dimensions (W×H×D)

(projections not included) 53×120×36.9 mm;

23⁄32×423⁄32×17⁄16 in.

Weight (approx.) 350 g; 12.3 oz (with antenna and BP-232N)

Transmitter

Output power (at 7.2 V DC) 5.0/1.5W typ. (PEP/CW)

Modulation limiting 70-100%

Frequency stability ±5ppm

Audio harmonic distortion Less than 10% (at 60% mod.)

Hum and noise ratio More than 35 dB

Spurious emissions More than 46 dB (except operating freq. ±62.5 kHz point)

Microphone impedance 3-conductor 2.5 (d) mm (1⁄10″) / more than 100kΩ

Receiver

Intermediate frequency

1st

2nd

46.35 MHz

450 kHz

Sensitivity (typ)

COM (at 6dB S/N)

NAV (at 6dB S/N)

WX (at 12dB SINAD)

-6dBµ typ.

-3dBµ (IC-A14 only)

-13dBµ (IC-A14 only)

Squelch

AM

FM

Less than 0dBµ

less than -5dBµ

Selectivity More than 7.5 kHz/-6 dB

Less than 25 kHz/-60 dB

Hum and noise More than 35 dB (at 30% mod.)

Spurious response

AM

FM (IC-A14 only)

More than 60 dB

More than 30 dB

Audio output power

Internal speaker

External speaker

More than 700mW

More than 500mW at 10% distortion with an 8Ω load, 30% modulation

Ext. speaker connector 3-conductor 3.5 (d) mm, (1⁄8″) / 8Ω
