Key Features


CHIRP sonar advantages:

- Easier to identify and distinguish bait and game fish targets

- Better target identification at greater depths

- Mark fish clearly at faster boat speeds

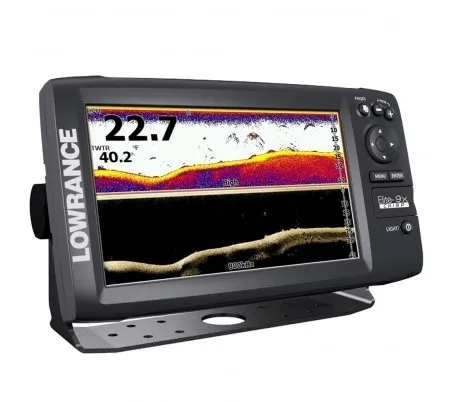

Elite-9x CHIRP advantages:

Lowrance-exclusive, brilliant, high-resolution, 9-inch, LED-backlit color display

CHIRP Sonar plus DownScan Imaging™ -- the power of today’s leading fishfinder technologies combined to provide the best possible view beneath your boat.

DownScan Overlay™ technology overlays DownScan Imaging onto CHIRP Sonar

Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly

TrackBack™ to review recorded sonar history including structure, transitions or fish targets.

New page selector menu with quick access to all features using one-thumb operation

Multi-Window Display lets you quickly choose from pre-set page layouts -- including a three-panel view.

Supported by Lowrance Advantage Service program



Specifications





Overview



Display

9 inches / 229 mm



Resolution

16-bit color TFT 800 x 480



Backlighting

11-Level LED



Power Output: RMS (PTP)

Max 500W RMS



Operating Frequency

455/800 kHz (DownScan Imaging™), Low, Med, High (CHIRP), 50 kHz/83kHz/200kHz



Languages

31



Operating Voltage

12 vDC (10-17 vDC min-max)
